The Reve D PC 32mm Rear Multi-Wound springs are a perfect choice for rc drift cars when drifting on P tile, or concrete. With three different types of stiffness to choose from, you can dial in your chassis to the perfect feel based on weight, road surface grip, and driver style.
In addition to the stiffness of the springs, the springs are reversible, providing another layer of fine adjustment to your suspension and chassis.
Pair the PC Rear Springs with the Reve D 0mm Aluminum Spring Retainers for the best spring performance.
PC Tuning Notes:
- Line to line (double coil) facing down: Lower center of gravity (CG).
- Improved stability/reduce excess suspension movement.
- Line to line (double coil) facing up: Higher center of gravity (CG).
- Increased traction/harder tail kick under throttle/increased droop.
Specifications:
Length: 32mm
Number of Turns: 10.5
◆PC Rear spring matching table
<2WAY structure explanation/Introduction of 2WAY structure>
◆When using with the contact part between lines facing up / Contact lines UP
If you use it with the line-to-line contact part on the upper side, the center of gravity of the spring will be high, which will cause the suspension to sink. Enhances traction and strengthens kick-out when the throttle is on.
By raising the center of gravity of the spring, the droop of the suspension is induced and the kicking out feeling is stronger.
◆ When using with the line-to-line contact part facing down / Contact lines Down
If the wire-to-wire contact part is used on the lower side, the center of gravity of the spring will be lowered and excessive suspension movement will be suppressed. Recommended when you want to improve stability.
By lowering the center of gravity of the spring, excessive suspension movement is suppressed and stability is increased on low grip surfaces.

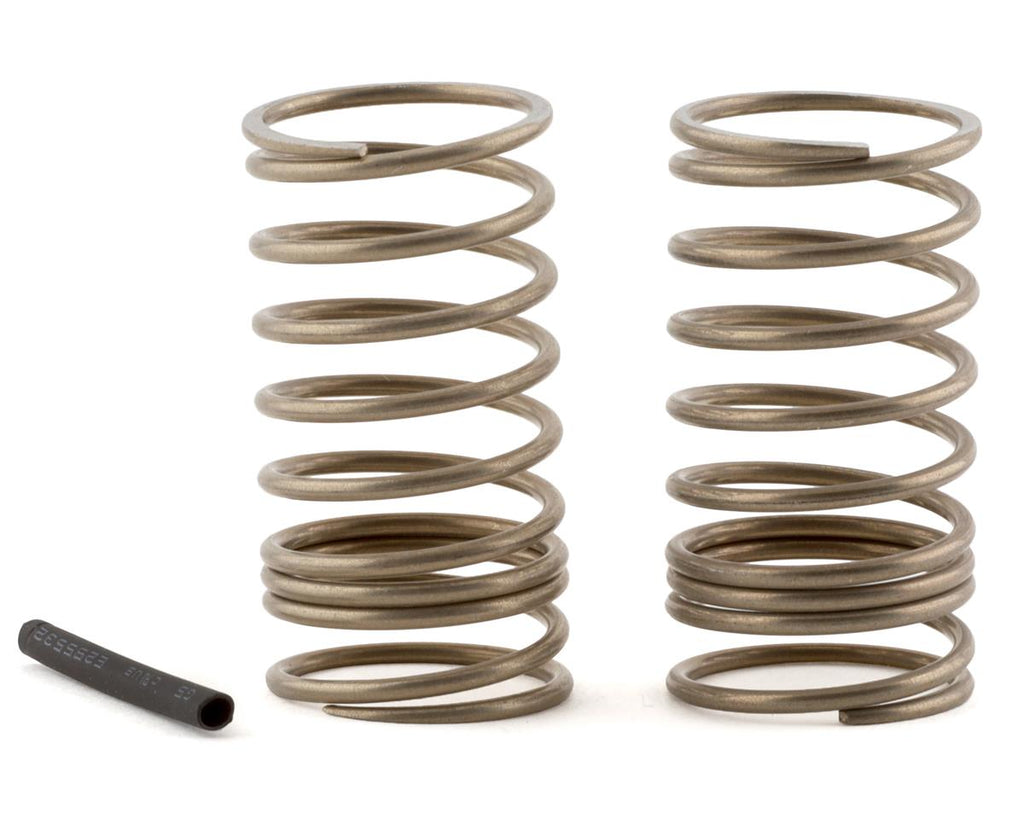

◆ Heat shrink tube for identification
A heat-shrinkable tube is included to help identify the spring.
(* Medium: Black, Medium Hard: Yellow, Hard: Red)
Cut it to the desired length, attach it to the spring referring to the image, warm it with a dryer etc. and fix it (* When using a dryer, burn enough Please note) to etc.
A Heat-Shrinkable Tube Is Bundled For Easy Identification Of Springs.
(* Medium: Black, Medium Hard: Yellow, Hard: Red)
Cut It to your Desired Length, Attach It to the Spring With Reference to the image, warm it with a drier in order to fix it (* Please be careful of burns when using a drier on high heat)
◆Aluminum spring retainer 0mm is recommended! / Aluminum Spring Retainer 0mm is the superset
For PC rear springs with a spring length of 32 mm, we recommend the aluminum spring retainer (RD-007-0 ￥980) with a mounting height of 0 mm .
It is possible to suppress the mounting play with the outer guide part and maximize the original performance of the spring.
For PC rear springs with a spring length of 32 mm, we recommend the aluminum spring retainer (RD-007-0 ¥980) with a mounting height of 0 mm. It is possible to suppress the mounting play with the outer guide part and maximize the original performance of the spring.
