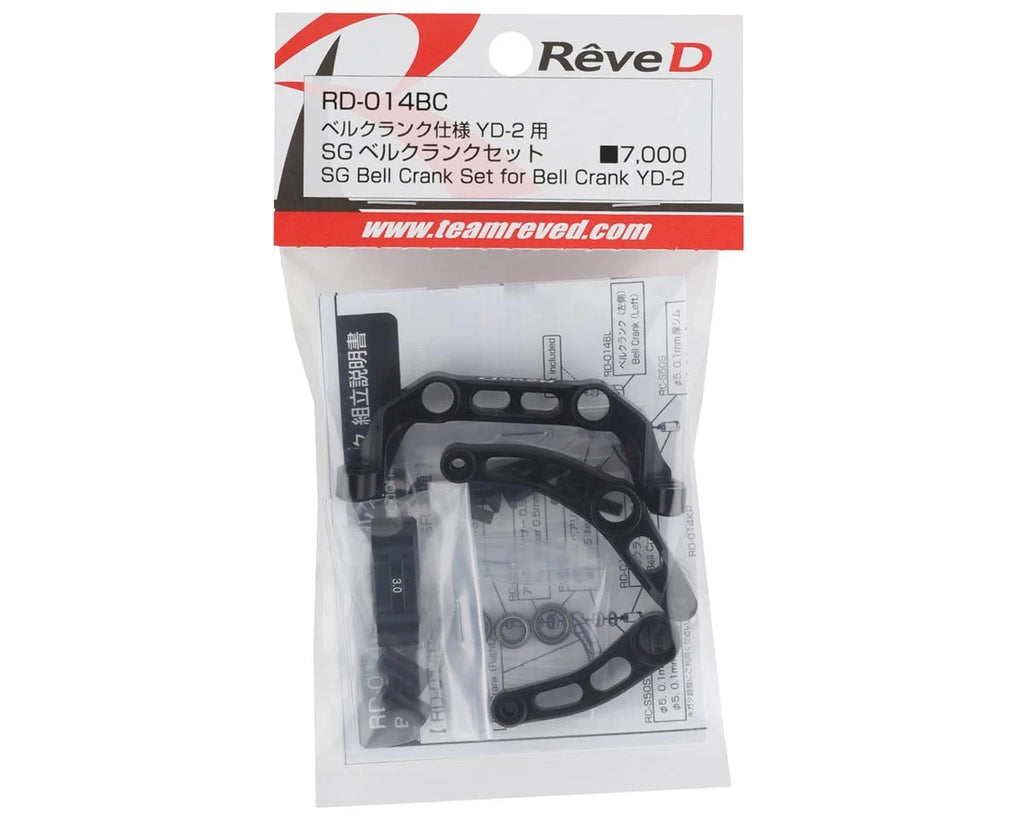

REVE D SG Bell Crank Set for Bell Crank YD-2 (RD-014BC)
The next-generation steering system, SG Bell Crank set, is finally available!

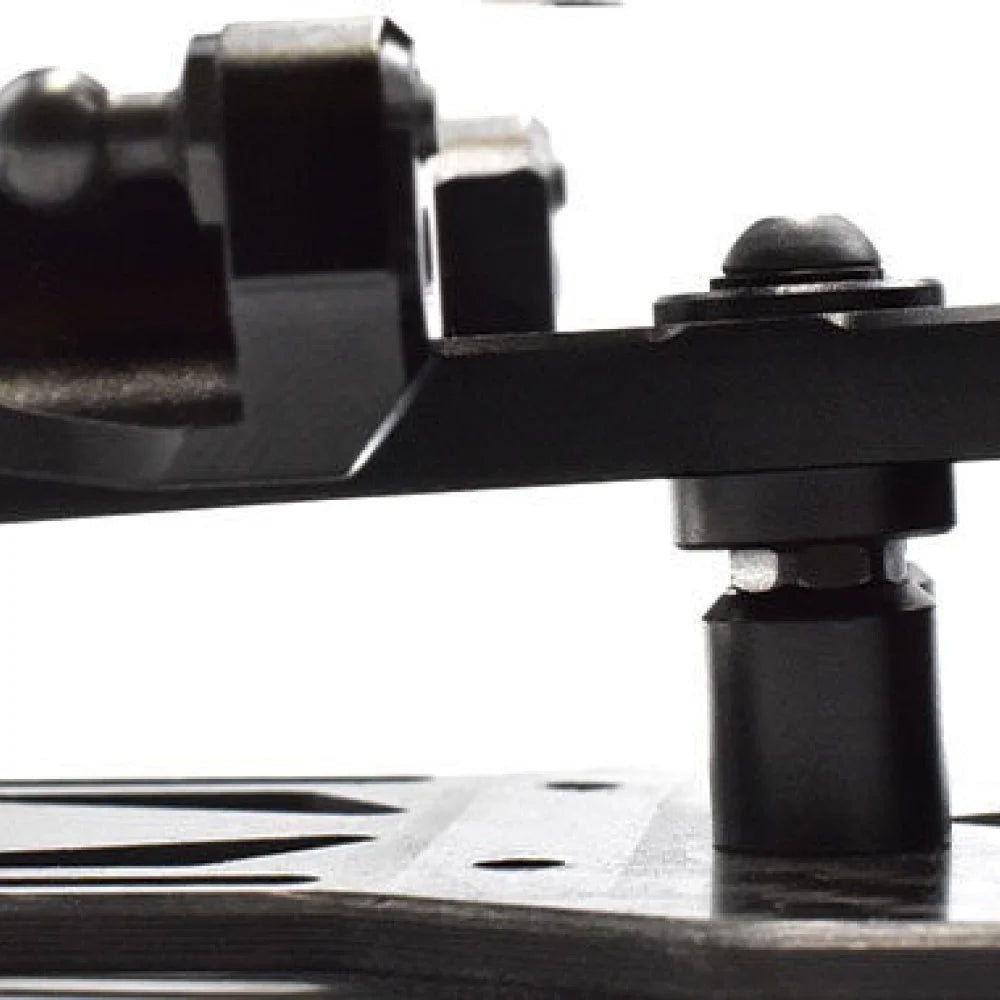

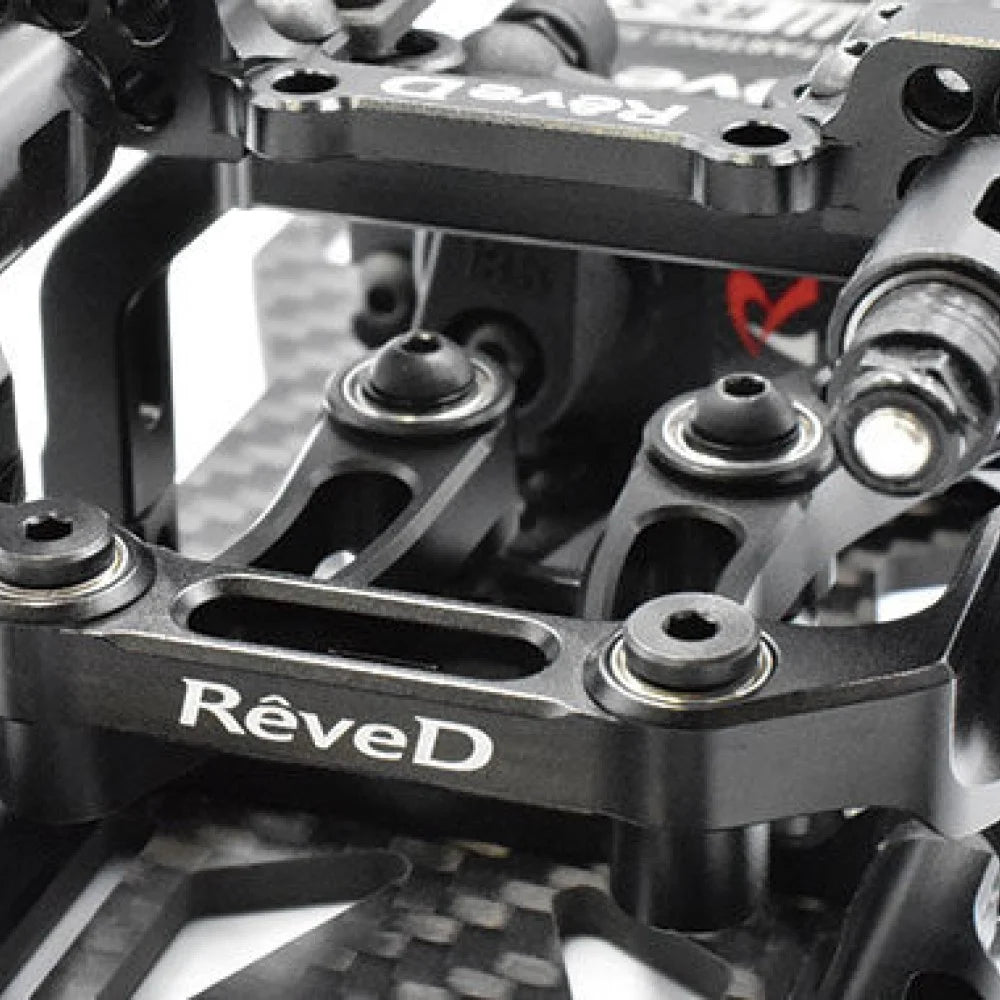

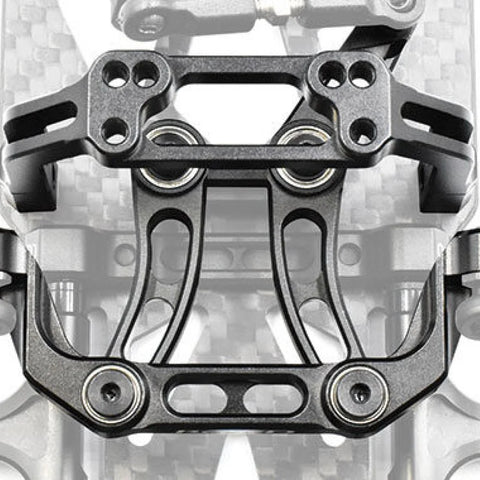

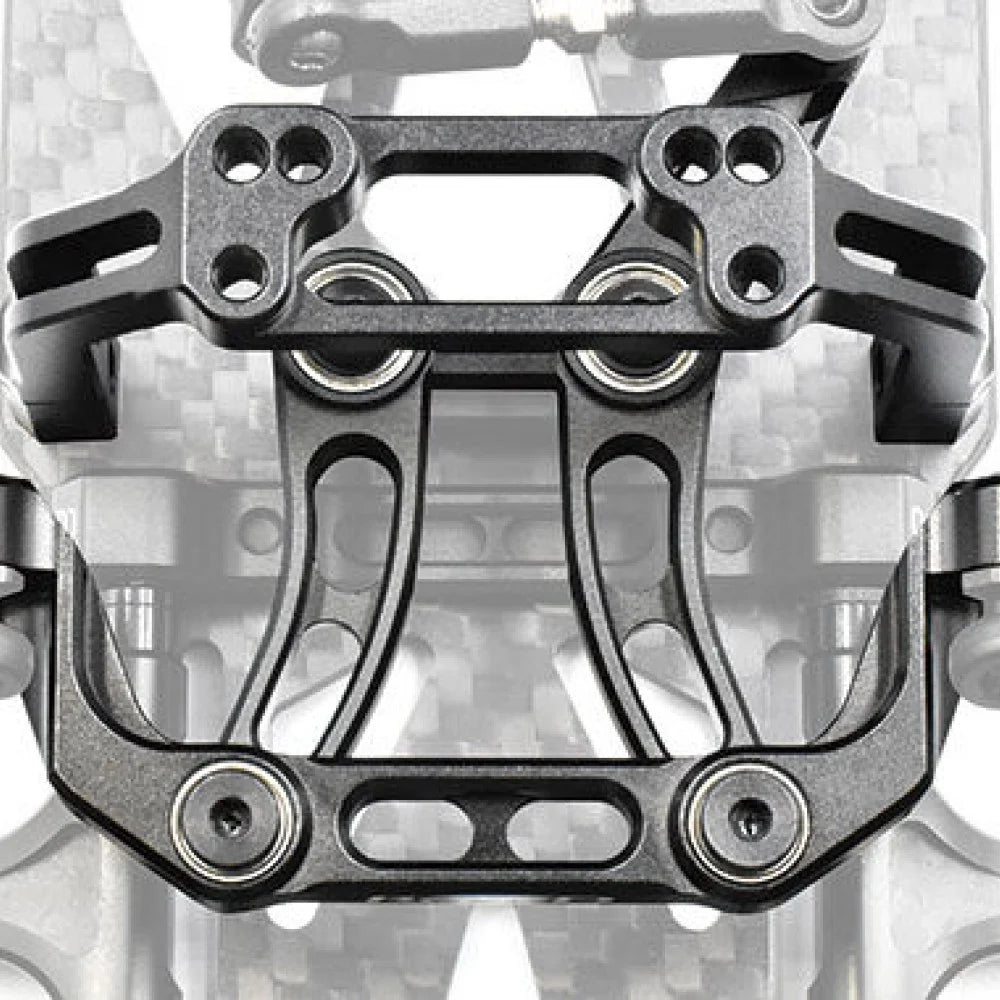

By mounting the bell crank unit forward (3 degrees), the horizontal angle change of the tie rods during steering operation is minimized and stable cornering characteristics are achieved. In addition, by mounting the ball stud for the tie rod horizontally, Ackerman adjustment with spacers is now possible. There are two types in the lineup, for those who use a bell crank specification machine already, we have prepared a “bell crank specification set” and for those who use a slide rack specification machine a “Slide rack specification set” that includes the top deck and servo mount to convert to the bell crank system. Please try this incredible SG bell crankset that has not only the lighter and faster response advantages of the bell crank but also the benefits of the slide rack. The best of both worlds!

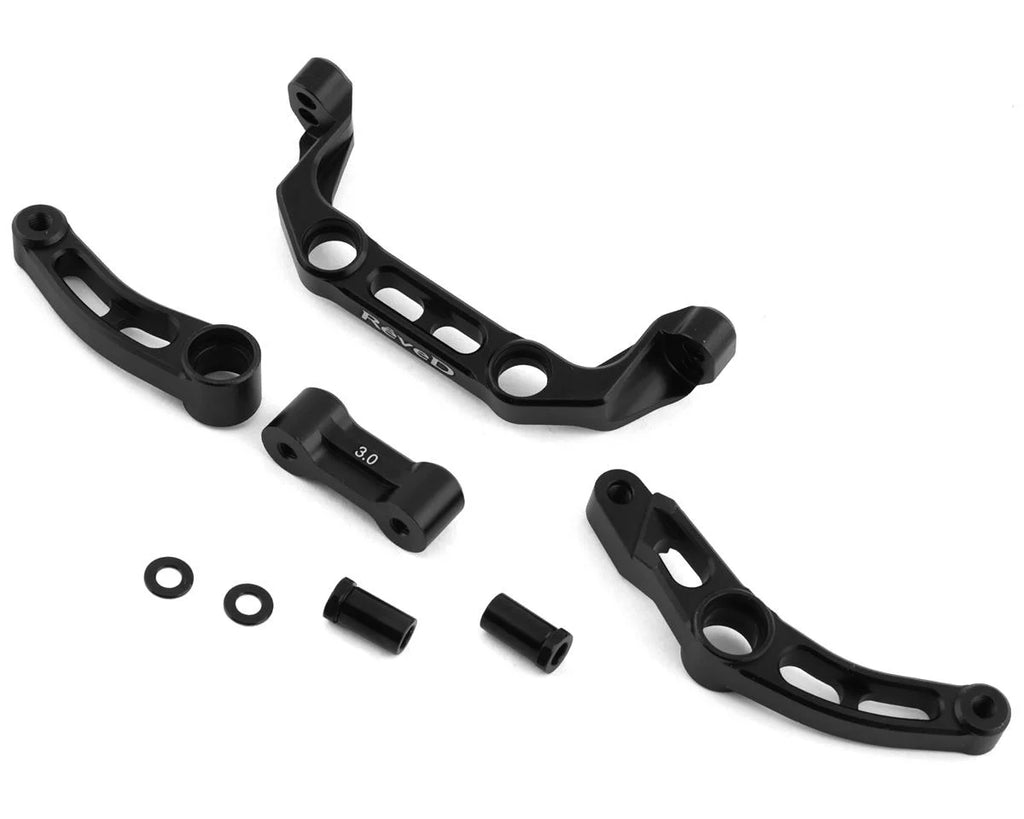

■Contents（Please refer to the lower parts list for details of each part.）
・Alu. Bell Crank（1pc each for left and right）
・Alu. Center Link（1pc）
・Alu. Bell Crank Post（2pcs）
・Alu. Bell Crank Base（3.0deg,1pc）
・Alu. King Pin（2pcs）

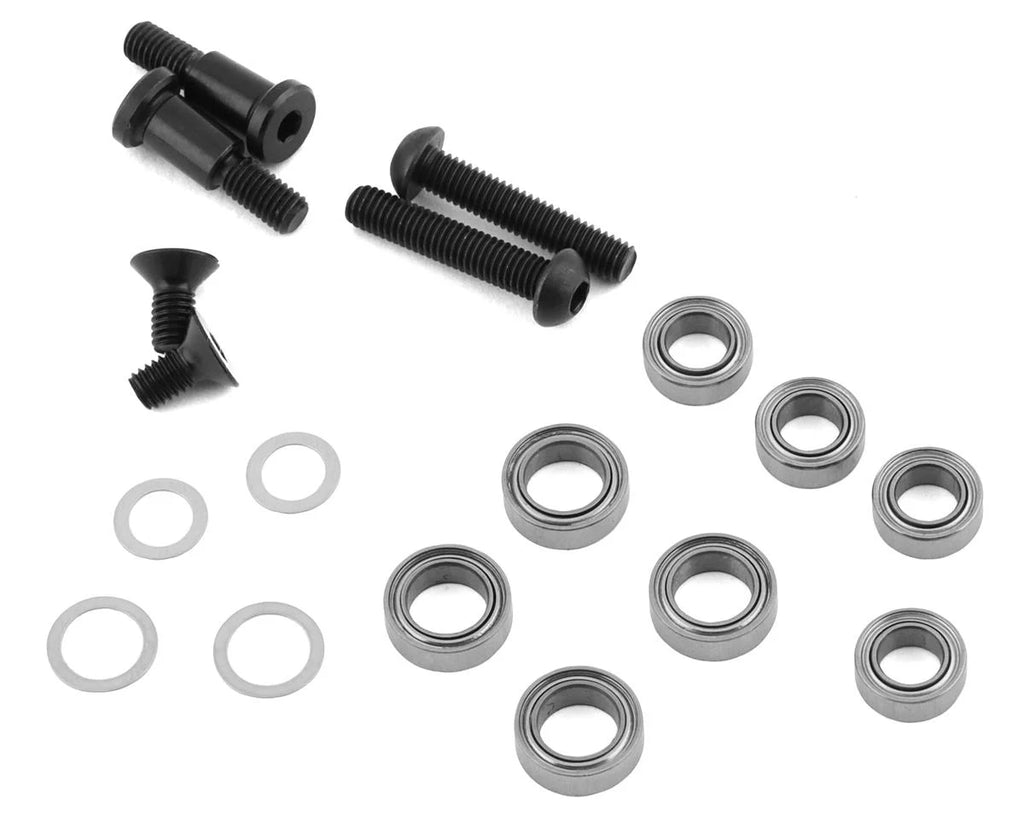

・Φ5, 0.1mm Shim（2pcs）
・Φ4, 0.1mm Shim（2pcs）
（For slide rack version also includes）
・Alu. Bell Crank Bridge Set（1pc）
・Alu. Servo Mount（2pcs）
・Assembly Instructions / Parts List（1sheet）
